Setup Wizard

Vizlib Sheet Menu has a Setup Wizard to help you create a visualization quickly and easily.

This topic contains the following sections:

The wizard is activated when you add a Vizlib Sheet Menu object from the Custom Objects menu to a sheet (Figure 1).

Figure 1: Setup Wizard

If you want to use the Setup Wizard, follow these instructions:

Click on Custom Objects in the far-left panel, to open the custom objects menu.
Select Vizlib Sheet Menu.
Click and hold the cursor on Vizlib Sheet Menu.
Drag and drop the cursor into the sheet.
Drag the table edge (highlighted in orange) to change the table size.
Click Top Menu Wizard, drag and drop menu items to add them, then click Save to finish.
Click Side Menu Wizard, drag and drop menu items to add them, then click Save to finish. You should be able to see the top menu and side menu items you've added in the sheet menu.
Click on Done to close edit mode and view your sheet menu.

Edit Setup Properties

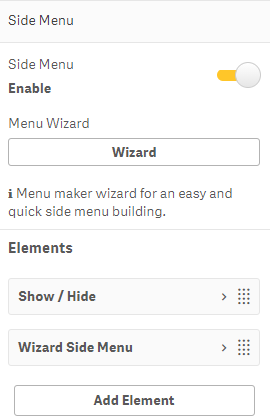

Once you've finished setup, you can edit the sheet menu settings in the property panel. Figure 2 shows an example of Side Menu settings.

Figure 2: Property Panel
