Properties - Table Settings and Alternate State

This topic contains the following sections:

• Table Settings

• Alternate State

Table Settings

With Table Settings (Figure 1), you can Enable merge for repeated dimension values, set the Horizontal scrollbar position, choose how to Stretch Table (Fill or Size to Data) and select how to Use Available Space, setting the Min Column Width. You can also choose the Null Cell Background Color and add a Null Symbol.

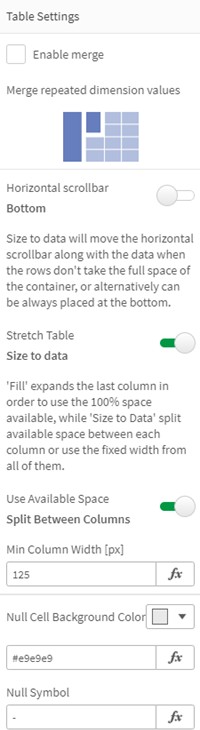

Figure 1: Table Settings

You can also choose to Highlight Rows on Hover (Figure 2), set the Highlight Background Color, the Highlight Font Color, show Table Borders and define them with the Table border selector, set the Table Border Thickness, Table Border Color and Table Border Style.

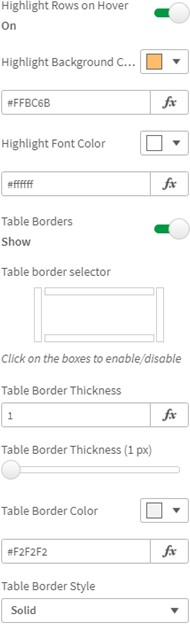

Figure 2: Table Highlights, Borders

Alternate State

Alternate State (Figure 3) permit you to assign the Vizlib Table to an alternate selection state. You can find more information about working with alternate states here.

Figure 3: Alternate State
