Properties - Interactivity, Alternate State
This topic contains the following sections:
Interactivity
The Interactivity section of the property panel lets you control how you interact with the Venn diagram object, as a developer and as a user. You can Allow Selections (Figure 1), which lets the user select the bubbles in the chart in order to pass selections back to the app, and control chart selections with Selectable Dimensions. You can also choose to show animation transitions by setting Animations enabled to Show.

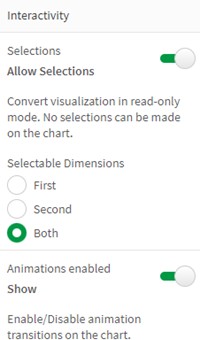

Figure 1: Selections, Aminations
If you set Tooltips to Show (Figure 2), you'll activate the tooltip functionality which displays a mini window with information about the data when the cursor hovers over a bubble. You can also choose to add an Intersection Symbol as Text or an Icon, Show unique values for Dimension Values and Show dim. values to display dimension data. You can also Show a Full screen Icon (users will be able to maximize objects) and a Snapshot Icon (users will be able to take snapshots of the object).
Note: Snapshot Icon has been part of the Hover Menu since the Qlik Sense September 2020 release, and is no longer controlled using the property panel.

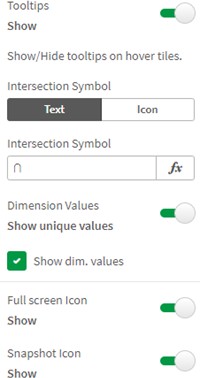

Figure 2: Tooltips, Intersection, Dimension Values, Icons
Alternate State
Alternate State (Figure 3) permits you to assign the Vizlib Venn Diagram to an alternate selection state. You can find more information about working with alternate states here.
Figure 3: Alternate State
