Properties - Tabs, Synchronization and Actions

This topic contains the following sections:

• Tabs

• Edit Tab

• Action on Click

• Tab Control

Tabs

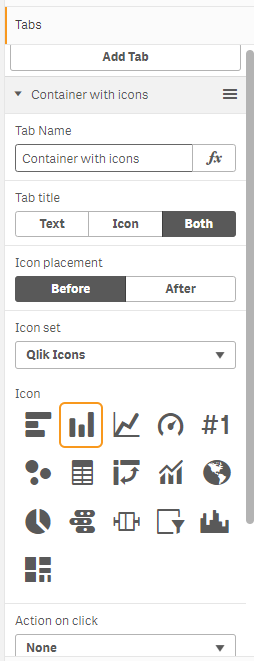

Use the Tabs setting (Figure 1) in property panel to add or remove Tabs in your visualization. Below is an example of four different tabs.

Figure 1: Tabs Setting

Edit Tab

If you expand the table, like in Figure 2, you can configure the visuals of your tab. Try them out and see what best fits your vizualisation.

Figure 2: Expanded section

Action on Click

The drop-down in the bottom of Tabs settings (Figure 3) gives you access to do certain actions when this tab is selected.

Figure 3: Action on click drop-down

Clear selections in field lets you type a Field Name or an Expression that results in a File Name. When the tab is selected, all the selections in that Field are cleared.

Select value in field provides a Field Name input as well but also a Field called Match String. Type a value or Expression that you want to be selected in this Field Name.

Select values in field does almost the same as above but lets you select multiple values in the Field. By default, you should type your values with a comma (,) as separator. But you can also use a custom separator by enabling that setting. If the Field is of data type Dual, the numeric value must be used in the Values field.

Set Variable is what it sounds like. Type the Variable Name, as well as the Variable value you want. As always, you can type it as text or as an expression.

Tab Control

The Tab Control settings (Figure 4) give you the option to sync multiple containers active tab (Figure 5). Tabs with the same name will be synced (case sensitive).

Figure 4: Tab Control

Figure 5: Synced Tabs

Use an expression to activate a tab. When the expression evaluates to the tab name, the tab will be active. A hidden tab bar can also be activated using an expression.
